记录一下后台使用 SignaIR, 前台使用 Vue 实现一对一的聊天功能

# 效果展示

# SignaIR 后端实现

后端的环境是 asp.net core。版本是.net5，ORM 是 EFCore

# 实现思路

我本地 SignaIR 的实现是基于之前自己写的后端管理 demo. 已经有了用户表以及 jwt 的令牌授权认证。
所以会将每次客户端连接 SignaIR 后端服务的 ConnectionId 保存在对应的用户表字段里。来达到 SignaIR 的
ConnectionId 与登录用户对应

# 创建一个 ChatHub 类

	[Route ("/chatHub")]
	public class ChatHub:Hub
	{
	private readonly ChatMessageController _chatMessage;
	private readonly IHttpContextAccessor _httpContextAccessor;

	public ChatHub (ChatMessageController chatMessage, IHttpContextAccessor httpContextAccessor)
	{
	_chatMessage = chatMessage;
	_httpContextAccessor = httpContextAccessor;
	}


	public async Task SendMessage (int userId, int targetUserId, string message)
	{
	// 找到发送消息的人员
	List<string> connectionIds = _chatMessage.GetConnectionIds (userId, targetUserId).Where (x=>!string.IsNullOrWhiteSpace (x)).ToLis ();

	// 发送消息的模型
	var sendMessages = _chatMessage.SendMessage (userId, targetUserId, message);

	// 发送消息给对应的客户端 (用户)
	await Clients.Clients (connectionIds).SendAsync ("ReceiveMessage", sendMessages);
	}


	/// <summary>
	/// 当有新的客户端会触发此方法
	/// </summary>
	/// <returns></returns>
	public override async Task OnConnectedAsync ()
	{
	var accessToken = _httpContextAccessor.HttpContext.Request.Query ["access_token"];
	// 应用的项目已经使用了 jwt 令牌。vue 前端要传 header。后续的前端实现会写到
	var userName = _httpContextAccessor.HttpContext.User.Claims.Where (x => x.Type == "userName").FirstOrDefault ()?.Value;

	// 将登陆的用户 connectionId 更新到数据库
	await _chatMessage.UpdateSignaIRConnectionId (userName, Context.ConnectionId);

	// 重新连接初始化聊天历史记录 (现在没用到，前端会调用另外的接口初始化历史记录)
	var chatMessages = _chatMessage.InitMessage (userName);

	//await Clients.Client (Context.ConnectionId).SendAsync ("ReceiveMessage", chatMessages);
	}

	}

	public class SendMessage
	{
	public DateTime Date { get; set; }


	public string Message { get; set; }


	public int SendUserId { get; set; }


	public int RecvieUserId { get; set; }


	public int UserId { get; set; }

	public string Name { get; set; }


	public string Avatar { get; set; }
	}

# 数据库发送消息的实体

	public class ChatMessage:Entity
	{
	[Key]
	public int Id { get; set; }


	/// <summary>
	/// 发送者用户 Id
	/// </summary>
	public int SendUserId { get; set; }


	/// <summary>
	/// 接受者用户 Id
	/// </summary>
	public int ReceiveUserId { get; set; }


	/// <summary>
	/// 该消息拥有者
	/// </summary>
	public int UserId { get; set; }


	/// <summary>
	/// 发送的消息
	/// </summary>
	public string Message { get; set; }


	/// <summary>
	/// 消息阅读状态 0 未阅读，1 已阅读
	/// </summary>
	public int ReadState { get; set; }


	/// <summary>
	/// 消息位置 1 右侧，2 左侧
	/// </summary>
	public int Side { get; set; }

	}

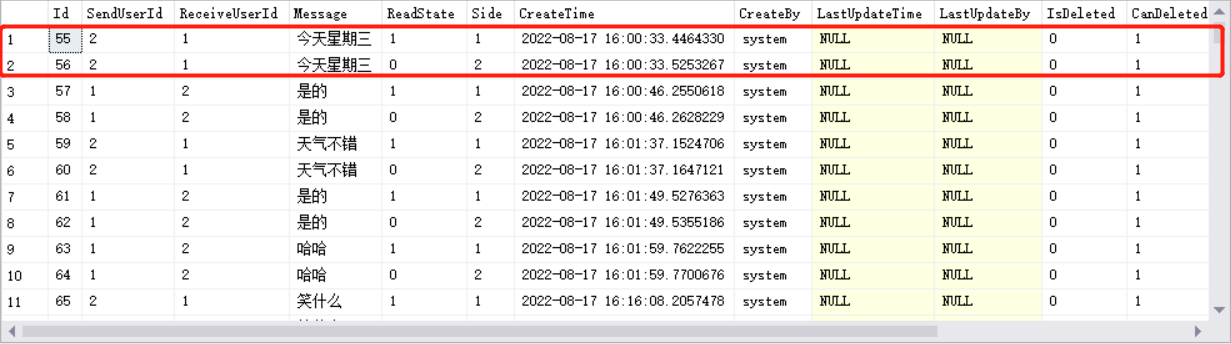

# 数据库消息记录

# 后端配置

	public void ConfigureServices (IServiceCollection services)
	{
	services.AddAuthentication (JwtBearerDefaults.AuthenticationScheme)
	.AddJwtBearer (options =>
	{
	options.Events = new JwtBearerEvents
	{
	// 添加接收消息时的事件
	OnMessageReceived = context =>
	{
	var accessToken = context.Request.Query ["access_token"];
	var path = context.HttpContext.Request.Path;
	if (!string.IsNullOrWhiteSpace (accessToken))// 这里可以修改为你相应的 hub 地址
	{
	context.Token = accessToken;
	}
	return Task.CompletedTask;
	},
	};
	})

	//SignalR
	services.AddSignalR ();

	// 注入聊天
	services.AddScoped<ChatMessageController>();
	services.AddSingleton<IHttpContextAccessor, HttpContextAccessor>();

	}

	public void Configure (IApplicationBuilder app, IWebHostEnvironment env)
	{
	app.UseEndpoints (endpoints =>
	{
	endpoints.MapControllers ();
	//signaIR (对应创建的 chatHub 类)
	endpoints.MapHub<ChatHub>("/chatHub");
	});
	}

# Vue 前端实现

# 前端的聊天显示组件是 JwChat

组件具体用法 JwChat

# 安装和使用 SignaIR

npm 安装

npm install @microsoft/signalr

引入 SignaIR

const signalR = require("@microsoft/signalr");

# 前端代码实现 (对 JwChat 样式进行了一些修改)

	<template>
	<div>
	<JwChat-index
	ref="jwChat"
	:taleList="list"
	v-model="inputMsg"
	@enter="bindEnter"
	height="630px"
	width="100%"
	:scrollType="scrollType"
	:config="config"
	:winBarConfig="winBarConfig"
	:showRightBox="true"
	>
	</JwChat-index>
	</div>
	</template>

	<script>
	const signalR = require ("@microsoft/signalr");
	import { method, fetch } from "../../network/request.js";
	const listData = [
	{
	//date: "",
	//text: { text: "起床不" },
	//mine: false,
	//name: "woris",
	//img: "http://106.75.244.75:82/upload/2022-08-17/20220817023058.png",
	},
	];
	function getListArr (size) {
	const listSize = listData.length;
	if (!size) {
	size = listSize;
	}
	let result = [];
	for (let i = 0; i < size; i++) {
	const item = listData [i]; //[Math.random ()*listSize>>0]
	item.id = Math.random ().toString (16).substr (-6);
	result.push (item);
	}
	return result;
	}
	export default {
	data () {
	return {
	inputMsg: "",
	list: [],
	connection: "",
	scrollType: "scroll",
	_state: this.state,
	friendId: 0,
	config: {
	img: "",
	name: "好友聊天",
	dept: "",
	},
	winBarConfig: {
	active: "win01",
	width: "160px",
	listHeight: "60px",
	list: [{}],
	callback: this.bindWinBar,
	},
	};
	},
	props: {
	state: {
	type: Boolean,
	default: false,
	},
	},

	watch: {
	state: {
	immediate: true,
	handler () {
	//this.$nextTick (() => {
	// this.$refs.jwChat.$refs.chatList.scrollBottom ();
	// });
	},
	},
	},

	methods: {
	// 发送消息
	bindEnter (e) {
	//this.$refs.jwChat.$refs.chatList.scrollBottom ();

	if (this.friendId==0){
	this.$Message.error ("请选择好友后发送")
	return
	}

	const msg = this.inputMsg;
	if (!msg) return;

	// 模拟两个人聊天
	let UserId = this.$store.state.user.id;
	let targetUserId = this.friendId;

	this.connection
	.invoke ("SendMessage", UserId, targetUserId, msg)
	.catch (function (err) {
	return console.error (err.toString ());
	});
	},

	// 收到消息
	ReceiveMessage (messages) {
	//this.$refs.jwChat.$refs.chatList.scrollBottom ();
	let UserId = this.$store.state.user.id;
	messages.forEach ((message) => {
	// 不加后面的判断同时发会消息错乱
	if (UserId == message.userId && ((this.friendId==message.sendUserId && UserId==message.recvieUserId) \|\|(this.friendId==message.recvieUserId && UserId==message.sendUserId) )) {
	const msgObj = {
	date: message.date,
	text: { text: message.message },
	mine: message.sendUserId == UserId,
	name: message.name,
	img: message.avatar,
	};
	this.list.push (msgObj);
	}
	});
	},
	// 初始化服务器连接
	initSignaIRConnection () {
	let token = this.$store.state.accessToken;
	// 连接 signaIR
	this.connection = new signalR.HubConnectionBuilder ()
	.withAutomaticReconnect () // 断开重新连接
	.withUrl (
	"https://localhost:5001/chatHub",
	// {
	// skipNegotiation: true,
	// transport: signalR.HttpTransportType.WebSockets,
	// }
	{ accessTokenFactory: () => token } // 带上令牌
	)
	.build ();

	this.connection
	.start ()
	.then (() => {
	this.$Message.success ("连接聊天成功");
	})
	.catch ((e) => {
	this.$Message.error ("连接聊天失败");
	});

	// 注册方法
	this.connection.on ("ReceiveMessage", this.ReceiveMessage);
	//this.connection.on ("NewConnection", this.NewConnection);
	},

	// 初始化好友
	async initFriends () {
	let { code, data } = await fetch (
	method.GET,
	"https://localhost:5001/frineds",
	{
	userName: this.$store.state.user.name,
	}
	);

	this.winBarConfig.list = data.map ((item) => {
	return {
	id: item.id,
	img: item.avatar,
	name: item.name,
	dept: "",
	readNum: 0,
	};
	});
	},

	// 好友聊天记录
	async frinedsChatMessages (friendId) {
	let UserId = this.$store.state.user.id;
	let { code, data } = await fetch (
	method.GET,
	"https://localhost:5001/frinedsChatMessage",
	{
	friendId: friendId,
	owerId: this.$store.state.user.id,
	}
	);

	this.list = data.map ((message) => {
	return {
	date: message.date,
	text: { text: message.message },
	mine: message.sendUserId == UserId,
	name: message.name,
	img: message.avatar,
	};
	});
	},

	async bindWinBar (play = {}) {
	const { type, data = {} } = play;
	console.log (play);
	if (type === "winBar") {
	const { id, dept, name, img } = data;
	this.config = { ...this.config, id, dept, name, img };
	this.winBarConfig.active = id;

	// 好友
	this.friendId = id;
	// 加载化聊天记录
	await this.frinedsChatMessages (id);
	//this.list = getListArr ();
	}
	},

	DomInit () {
	var chat = document.querySelector (".chatPage .web__main");
	// console.info ( window.getComputedStyle (chat,null)["transform"]);
	//chat.hight = "0px";
	console.info (chat);
	},
	},

	async created () {
	this.$nextTick (async () => {
	await this.initFriends ();
	});
	this.initSignaIRConnection ();
	},

	mounted () {
	//this.list = getListArr ();
	this.$nextTick (() => {
	//this.$refs.jwChat.scrollBottom ();
	//console.info (this.$refs.jwChat.$refs.chatList);
	//this.$refs.jwChat.$refs.chatList.loadDone ();
	});
	},
	};
	</script>
	<style lang="scss">
	.ChatPage {
	margin: 0px !important;
	display: flex !important;
	.header {
	display: none !important;
	}
	.rightBox {
	display: none !important;
	}

	.winBar {
	position: relative !important;
	transform: translateX (0px) !important;
	}
	.main {
	display: block !important;
	width: 100% !important;
	height: 100% !important;
	}
	.chatPage {
	height: 100% !important;
	}
	.chatBox {
	height: 100% !important;
	}

	.scroller {
	//border: 1px solid green;
	//overflow: scroll !important;

	.bscroll-indicator {
	display: none;
	}
	}

	.scroller::-webkit-scrollbar {
	width: 0 !important;
	}
	.taleBox {
	//overflow: scroll !important;
	.wrapper::-webkit-scrollbar {
	/* 滚动条整体样式 */
	width: 10px;
	/* 高宽分别对应横竖滚动条的尺寸 */
	height: 1px;
	}

	.wrapper::-webkit-scrollbar-thumb {
	/* 滚动条里面小方块 */
	border-radius: 0px 10px 10px 0px;
	background-color: #b176c5;
	}

	.wrapper::-webkit-scrollbar-track {
	/* 滚动条里面轨道 */
	-webkit-box-shadow: inset 0 0 5px rgba (0, 0, 0, 0);
	background: rgba (255, 255, 255, 0.4);
	border-radius: 0px 10px 10px 0px;
	}
	/* 兼容 IE*/
	.wrapper {
	-ms-scroll-chaining: chained;
	-ms-overflow-style: none;
	-ms-content-zooming: zoom;
	-ms-scroll-rails: none;
	-ms-content-zoom-limit-min: 100%;
	-ms-content-zoom-limit-max: 500%;
	-ms-scroll-snap-type: proximity;
	-ms-scroll-snap-points-x: snapList (100%, 200%, 300%, 400%, 500%);
	-ms-overflow-style: none;
	overflow: auto;
	border: 1px solid #b176c5;
	width: 100% !important;
	height: 100% !important;
	}
	//.wrapper {
	// border: 1px solid green;
	// overflow: scroll !important;
	// overflow-y: none;
	// }
	}
	.toolBox {
	border: 1px dashed #b176c5;
	border-top: none;
	}

	//.web__main
	// {
	// transition-timing-function: cubic-bezier (0.165, 0.84, 0.44, 1) !important;
	// transition-property: transform !important;
	// transition-duration: 0ms !important;
	// transform: translateX (0px) translateY (-1591px) translateZ (1px) !important;
	// }
	}

	//.ivu-drawer-body {
	// overflow: scroll !important;
	// }
	</style>
